DRONES
Introducing the Aerobo PPK (AS-MC03-PPKHL), a drone equipped with a dual-frequency GNSS receiver and compatible with Post-Processed Kinematic (PPK) surveying.
Featuring the Herelink HD Transmission system, it delivers long-range, stable communication and enables real-time camera monitoring and in-flight gimbal control, providing greater efficiency and flexibility in aerial mapping and inspection missions.
AS-MC03-PPKHL
The Aerobo PPK is a Japan-made drone designed for photogrammetric surveying with Post-Processed Kinematic (PPK) positioning capability.
While maintaining the high surveying accuracy of previous models, the integration of the Herelink HD Transmission system further enhances communication performance. In addition, the handheld ground terminal—equipped with the Aerobo Station flight management application—offers improved operational stability.
Responding to numerous user requests, operators can now view live camera footage during flight and control the gimbal to capture as-built images from any desired angle, greatly improving ease of operation and overall convenience.
FEATURES
Main Features of New Aerobo PPK
Dual-Frequency GNSS Receiver (High-Precision Positioning)
The onboard dual-frequency GNSS receiver directly receives and logs high-precision positioning data while capturing images. By receiving signals on two different frequency bands, it compensates for ionospheric and atmospheric effects, achieving faster and more accurate positioning than single-frequency systems.
Herelink HD Transmission & Integrated Aerobo Station
With Aerosense’s proprietary flight management application Aerobo Station integrated into the controller, operators can easily create flight plans and conduct fully automated missions. The Herelink HD Transmission system extends communication range and enhances control stability. Operators can view live camera footage and control the gimbal during flight to capture as-built photos from any desired angle.
Quick-Attachment Camera Mount
The quick-attachment mechanism allows one-touch camera installation, simplifying setup compared with previous models.
AS-MC03-PPKHL
| Model | AS-MC03-PPKHL |
|---|---|
| Dimensions (without propellers) |
517 x 517 x 509 mm (excluding propellers) |
| Dimensions (with propeller guard) |
943 x 943 x 509 mm (excluding propellers) |
| Weight | 3.02 kg |
| Weight (with propeller guard) |
3.24 kg |
| Power | 6S 16,000mAh LiPo battery |
| Max speed | 36km/h |
| Wind resistance | 15m/s |
| Max payload | 1.8kg |
| Flight time | 25 mi n *1 |
| Dust & Water resistance (IP) | IP43 (Excluding gimbal camera) |
| Operational Temp. | - 5℃ ~ 40 ℃ (Excluding battery) |
| Control frequency | 2.4GHz |
| GNSS | GPS/ QZSS 、GLONASS 、 Galileo 、 BeiDou |
| Flight controller | In house flight controller + application processor |
| Camera | Sony α6100 、3 axis gimbal, One touch attachment |
| 安全機能 | ・LED lighting to indicate drone direction ・Automatic return due to low battery ・Automatic return due to communication loss ・Emergency landing due to GPS signal loss ・Emergency stop ・Automatic disarm due to irregular tilting |
* ¹ Flight time is an estimation under controlled environment.
MORE INFORMATION

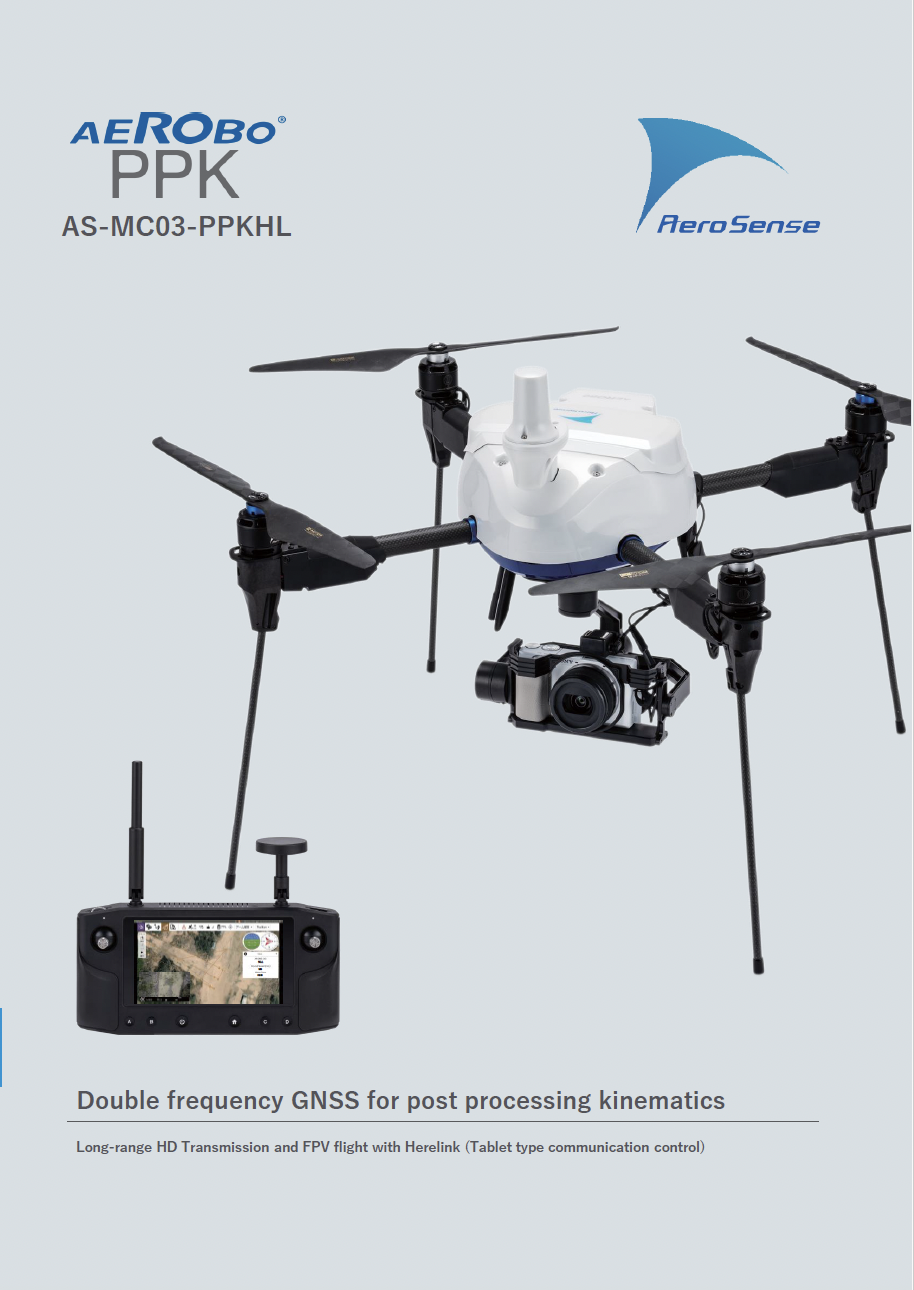

This is the catalog for the Japanese drone New Aerobo PPK (AS-MC03-PPKHL), equipped with a dual-frequency GNSS receiver and supporting Post-Processed Kinematic (PPK) surveying for high-precision aerial mapping.
Click here to download the documents.
Download product catalogs for drones and catalogs for peripheral equipment and systems.
